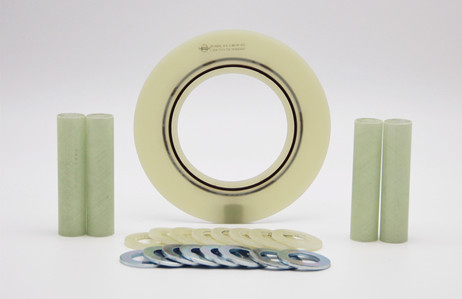

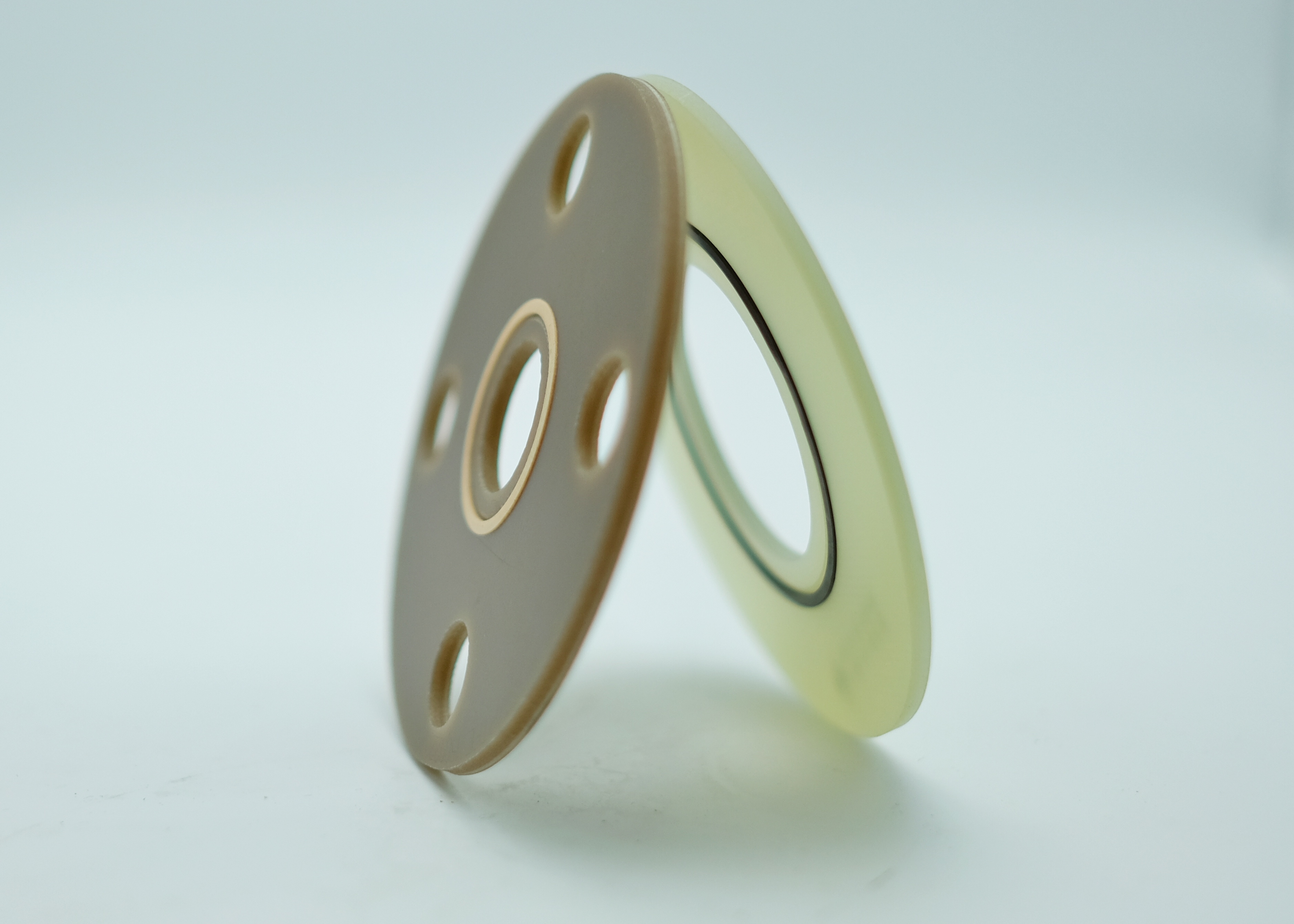

Orinseal® Sealing gasket is a designed for electrical flange insulation in low pressure service. It is suitable for raised face or flat face (not ring type joint) flanges up to class ANSI 600#. Orinseal is available in both type F (ring type) and type E (full face), with kits, it is excellent for general applications where electrical flange insulation and corrosion control are required.

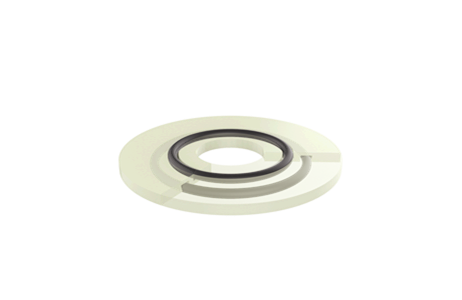

Orinseal® gasket consist of a retainer with two staggered dovetail shape seal grooves on both sides and sit with two elastomeric sealing elements ( rubber O ring or Spring energized PTFE seal), this design breaks the path between each layer of laminated retainer and guarantees the high sealing reliable under the low bolt load.
Applications:
Advantages and Benefits
Retainer Material:
Retainer Material Specifications:
| ASTM | Test Method | G10 | G11 |
| D149 | Dielectric Strength Volts/Mil (Short Time) | 550 | 550 |
| D638 | Tensile Strength (psi) | 50,000 | 41,000 |
| D695 | Compressive Strength(psi) | 50,000 | 50,000 |
| D790 | Flexural Strength(psi) | 55,000 | 55,000 |
| D732 | Shear Strength (psi) | 21,000 | 21,000 |
| D256 | Impact Strength (ft-lb/in) | 12 | 10 |
| D570 | Water Absorption | 0.10% | 0.10% |
| Temperature Range(°F) | -200 to 302 | -50 to 392 | |
| Temperature Range(°C) | -129 to 150 | -46 to 200 |
Seal Elements Material:
Seal Material Specifications:
| PTFE | FKM | NBR | |
| Operating Temperature(°F) | Cryogenic to 500 | -20 to 392 | -40 to 250 |
| Operating Temperature(°C) | -196 to 260 | -29 to 200 | -40 to 121 |
Note: Consider both retainer and seal element temperature limited together.
